Latest Products from Exerlon Power
[BUNDLE] ABB Auto Recloser ELCB F3C-AR230 / F3C-AR230 D + RCCB / ELCB
In stock
ABB TOR Thermal Overload Relay, TA25DU-…M (0.1-0.16A … 60-110A)
In stock
| Weight | 0.17 kg |
|---|---|
| Dimensions | 4.7 × 8.2 × 9.8 cm |
| Model |
TA110DUM ,TA25DUM ,TA42DUM ,TA75DUM ,TA80DUM |
| Current Rating |
0.1-0.16A ,0.16-0.25A ,0.25-0.4A ,0.4-0.63A ,0.63-1A ,1-1.4A ,1.3-1.8A ,1.7-2.4A ,10-14A ,13-19A ,18-25A ,2.2-3.1A ,2.8-4A ,22-32A ,24-32A ,29-42A ,3.5-5A ,36-52A ,4.5-6.5A ,45-63A ,6-8.5A ,60-110A ,60-80A ,65-90A ,7.5-11A |
| Brand |
ABB |
| Voltage Rating |
440 VDC ,690 VAC |
| Poles |
3 Poles |
| Product or Component Type |
Thermal Overload Relay |
| No. of Contact |
1 NO + 1 NC |
| Losses |
at Rated Operating Conditions per Pole 1.1 … 2.2 W |
| Product Compatibility |
AX09 ,AX12 ,AX18 ,AX25 ,AX32 ,AX40 |
ELCO Capacitor Capbank 440V / 525V Power Capacitor (C/W Cables)
In stock
| Voltage Rating |
440 V ,525 V |
|---|---|
| Reactive Power Rating |
1 kVAR ,1.5 kVAR ,10 kVAR ,15 kVAR ,2 kVAR ,2.5 kVAR ,20 kVAR ,25 kVAR ,3 kVAR ,30 kVAR ,5 kVAR |
| Brand |
ELCO |
| Product or Component Type |
Capacitor Bank |
| Material |
Bi-axially Oriented Polypropylene, with Zinc-Aluminium Alloy (Dielectric) ,Extruded Aluminium Can (Case) ,Polyurethane Resin Oven Cured Flame Retardant (Encapsilation / Impregnation) |
| Overvoltage |
1.10* UN, Rated Voltage (For 8 hrs in every 24 hrs) |
| Overcurrent |
1.43* IN, Rated Current |
| Inrush Current |
200 IN |
| Losses |
< 0.2 W/kVAR (Dielectric) ,< 0.5W / kVAR (Including Discharge Resistor) |
| Capacitance Tolerance |
–5% / + 10% |
| Test Voltage |
2.15 UN for 2s (Terminal to Terminal) ,3000V / 10s | 4000V / 10s | 6000V / 10s (Terminal to Case) |
| Estimated Lifespan |
> 150,000 Operating Hours |
| Function Available |
Internal Delta Connection ,Pressure Activated Series Interruptor ,Self-Healing Technology |
| Mounting Mode |
Upright |

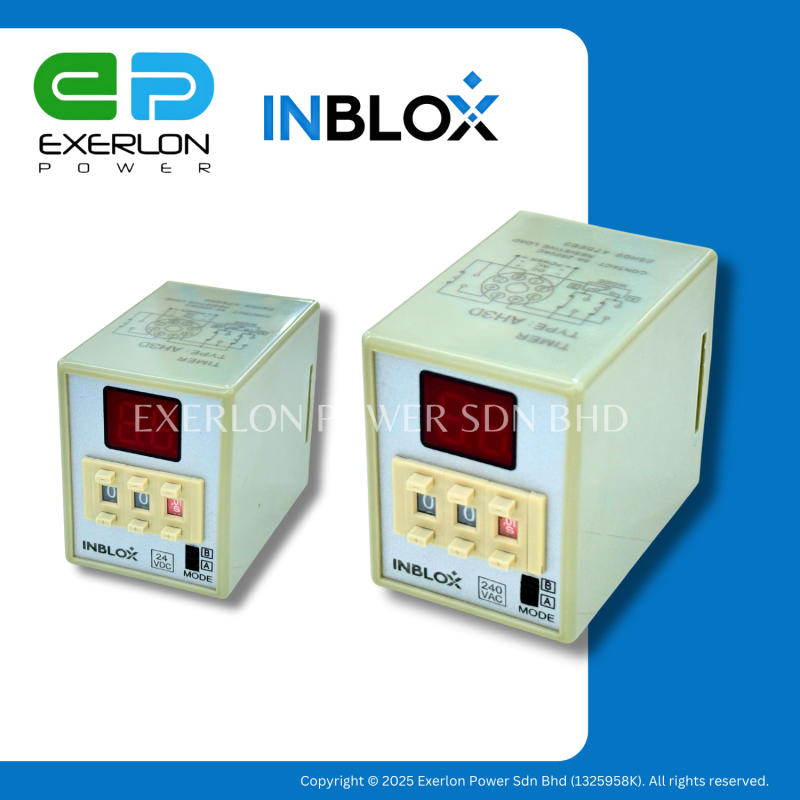

INBLOX AH3D-DM 8 PIN DOUBLE CONTACT MULTI RANGE DIGITAL TIMER 240VAC / 24VDC (0.01S…990H)
In stock
| Dimensions | 5 × 4 × 5.75 cm |
|---|---|
| Voltage Rating |
220-240 VAC ,24VDC |
| Brand |
INBLOX |
| Aux. Contact Composition |
2 C/O |
| Product or Component Type |
Multi-Range Digital Timer |
| Display |
2 Digit, 7 segment, Red Display |
| Electrical Durability |
100,000 times |
| Mechanical Durability |
5,000,000 times |
| Function Available |
2 Digit with A/B Mode ,CMOS IC (Low Power Consumption) ,Extreme Timing Accuracy ,High Operation Stability ,ON Delay |
| Model |
INBLOX AH3D-DM |
| Mounting Mode |
Din Rail (With Base) |
| Network Number of Phase |
Single Phase (240VAC / 24VDC) |
| Device Short Name |
AH3D-DM |
| Time Range |
HR: 9.9H, 99H, 990H ,MIN: 9.9M, 99M ,SEC: .99S, 9.9S, 99S |
MULTISPAN 3 Phase Digital Energy Meter (kWh Meter) 96×96, EM10
In stock
| Dimensions | 4.3 × 9.6 × 9.6 cm |
|---|---|
| Brand |
Multispan |
| Product or Component Type |
3Ø-Energy Meter |
| Model |
EM-10 |
| Network Number of Phase |
3Ø-4W |
| Display |
1 Displays ,8 digit, 7 segment, 0.5" Red display |
| Size |
96mm*96mm |
| Input Voltage |
30 Το 300V AC VLN CAT III ,50 Το 520V AC VLL CAT III |
| Input Current |
5 Amp or higher through external CT |
| Measurement Parameters |
Active Energy (kWh) ,Active Power (kW) |
| Voltage Rating |
100 to 270V AC/DC, 50/60Hz |
| Communication |
Pulse ,RS-485 MODBUS |

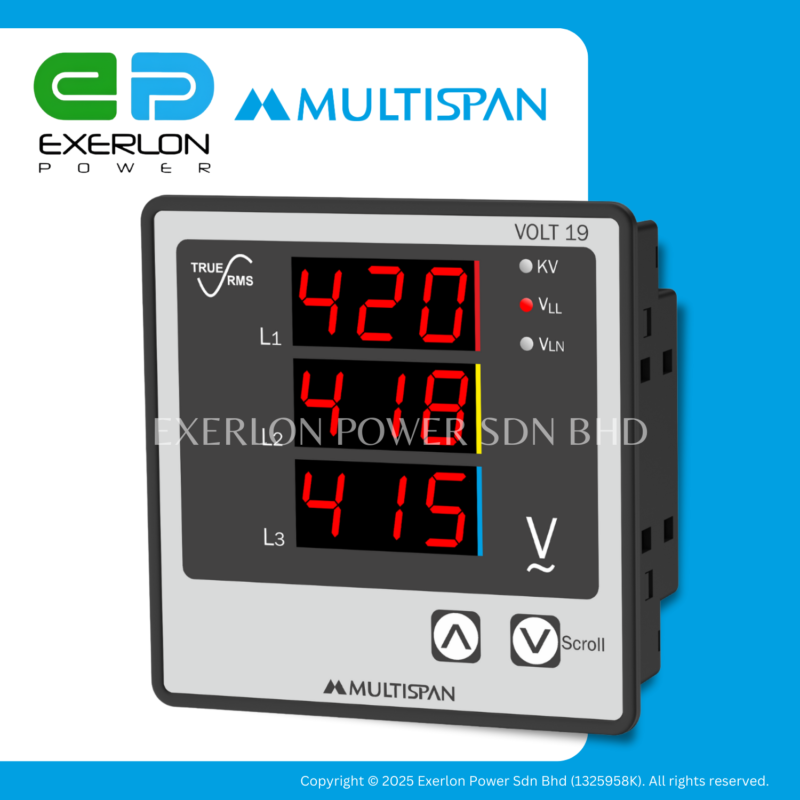

MULTISPAN 3 Phase Digital Voltmeter With 3 Display (96 x 96mm) VOLT-19
In stock
| Dimensions | 4.3 × 9.6 × 9.6 cm |
|---|---|
| Brand |
Multispan |
| Product or Component Type |
3Ø Voltmeter |
| Model |
VOLT-19 |
| Network Number of Phase |
3Ø-3W/4W |
| Display |
3 Displays ,3-Digit, 3-Line, 7-Seg, 0.56” RED LED |
| Primary Voltage |
100V to 520KVAC |
| Secondary Voltage |
100V to 520VAC |
| Voltage Rating |
100-270V AC, 50/60 Hz |
| Size |
(H)96mm X (W)96mm X(D)43mm |
| Measurement Parameters |
VLL – VLN (3Ø – 4W) ,VLL (3Ø – 3W) |
| Accuracy Class |
Class 0.5 (Standard) |

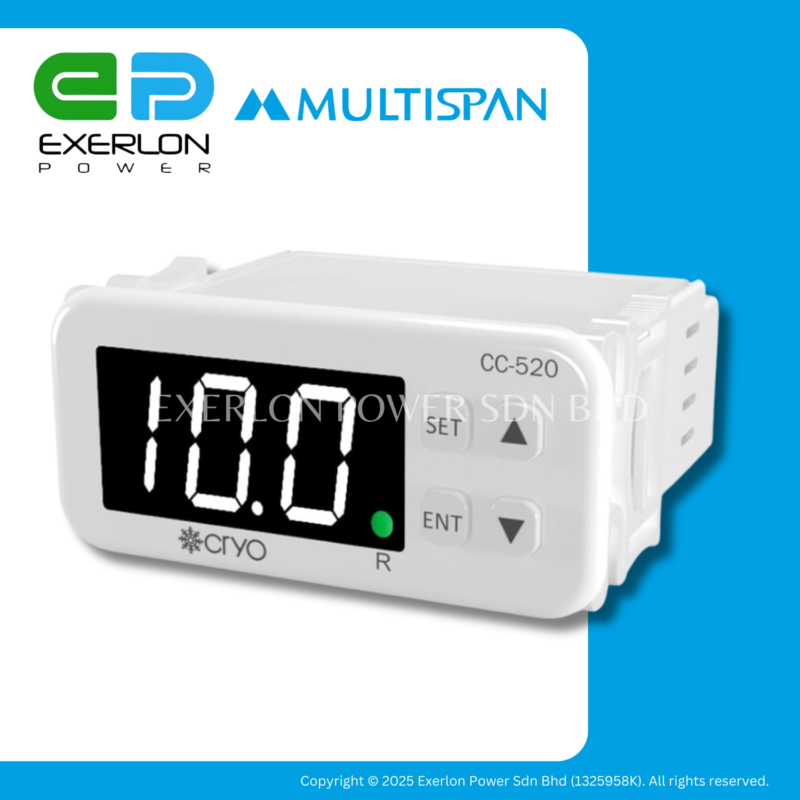

MULTISPAN Cooling Controller (20A Compressor Output) 40×83, CC-520
In stock
| Dimensions | 7.8 × 7.8 × 3.7 cm |
|---|---|
| Brand |
Multispan (CRYO) |
| Product or Component Type |
CRYO -20A Single Output Cooling Controller |
| Model |
CRYO CC-520 |
| Display |
3 Digit 0.56” 7 Segment RED / WHITE Display |
| Size |
37mm*78mm |
| Input |
NTC Thermistor |
| Output |
1 Relay, No – C/O contact, 20A (Resistive) |
| Range |
-50°C To 99.9°C |
| Voltage Rating |
230V AC,50/60Hz |
| Function Available |
20A Relay Output for Compressor or heater load ,3 Digit White/Red Display With 0.1 Resolution ,Available in touch/keypad module ,Single NTC input ,Time based defrost facility. |
MULTISPAN Digital Power Factor Meter (1 Display) 96×96, PF -11
In stock
| Dimensions | 4.3 × 9.6 × 9.6 cm |
|---|---|
| Brand |
Multispan |
| Product or Component Type |
Power Factor Indicator |
| Model |
PF-11 |
| Network Number of Phase |
1Ø-2W |
| Display |
1 Displays ,4-Digit,1-Line, 7-Seg, 0.56” RED LED |
| Size |
96mm*96mm |
| Range |
0.100 to 1.000 PF CAT III |
| Input Voltage |
20-300V AC CAT III |
| Input Current |
10mA To 5Amp AC CAT III |
| Voltage Rating |
230V AC,50/60Hz |
| Primary CT |
Up to 9999A (Programmable) |
| Secondary CT |
5A |
| Accuracy Class |
Class 0.5 (Standard) |

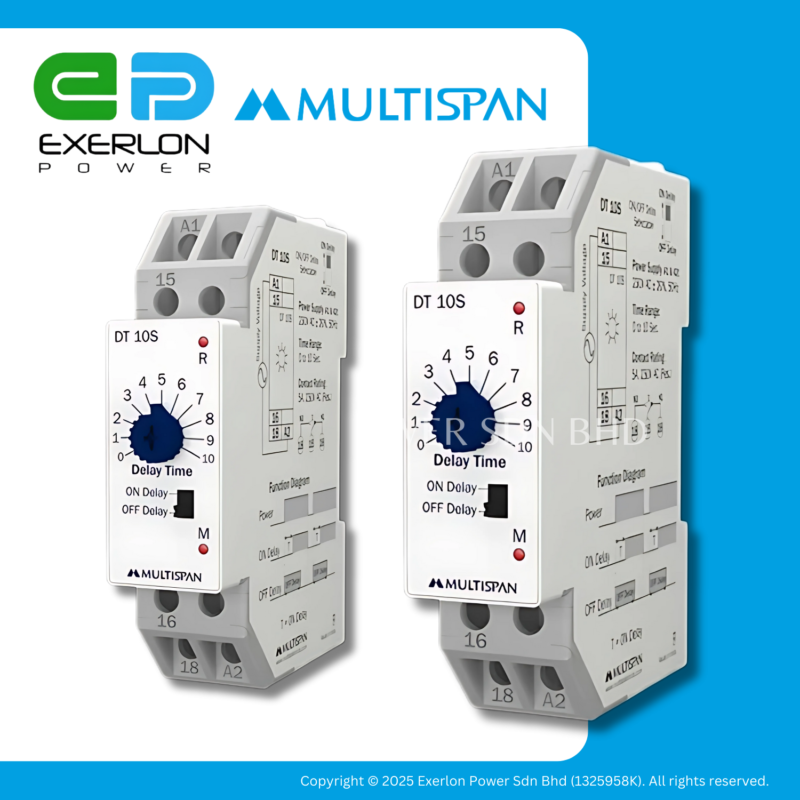

MULTISPAN Din Rail Mount Timer 240V, DT-10S / DT-30S / DT-60S / DT-15M / DT-30M
In stock
| Dimensions | 6.635 × 2.25 × 9 cm |
|---|---|
| Model |
DT-10S (0-10s) ,DT-15M (0-15min) ,DT-30M (0-30min) ,DT-30S (0-30s) ,DT-60S (0-60s) |
| Brand |
Multispan |
| Product or Component Type |
On/Off Delay Timer (Din Rail) |
| Time Range |
10 SEC ,15 MINS ,30 MINS ,30 SEC ,60 SEC |
| Voltage Rating |
240 VAC |
| Size |
(H)90mm x (W)22.5mm x (D)72mm |
| Function Available |
Output: 1-Relay O/P (1-C/O, 5A 230 VAC Resistive Load) |
| Mounting Mode |
DIN Rail |
SCHNEIDER Accessories for MCCB Shunt Trip, EZASHT200AC / EZESHT200AC / LV429387
In stock
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Model |
EZASHT200AC ,EZESHT200AC ,LV429387 |
| Brand |
Schneider |
| Range of Product |
ComPact ,EasyPact |
| Product or Component Type |
Voltage Release |
| Device Short Name |
MX ,SHT |
| Function Available |
Opening Coil & Shunt Trip Release |
| Operating Threshold |
0.7…1.1 x Un Opening |
| Response Time |
50 ms |
